AT89C51 (BASICS)

------------------------------------------------------------------------------------------------------------------------

Features :

• Compatible with MCS-51™ Products
• 4K Bytes of In-System Reprogrammable Flash Memory
– Endurance: 1,000 Write/Erase Cycles
• Fully Static Operation: 0 Hz to 24 MHz
• Three-level Program Memory Lock
• 128 x 8-bit Internal RAM
• 32 Programmable I/O Lines
• Two 16-bit Timer/Counters
• Six Interrupt Sources
• Programmable Serial Channel
• Low-power Idle and Power-down Modes

Description :

The AT89C51 is a low-power, high-performance CMOS 8-bit microcomputer with 4K bytes of Flash
 programmable and erasable read only memory (PEROM). The device is manufactured using Atmel’s
high-density nonvolatile memory technology and is compatible with the industry-standard MCS-51
 instruction set and pinout. The on-chip Flash allows the program memory to be reprogrammed in-system
 or by a conventional nonvolatile memory programmer.By combining a versatile 8-bit CPU with Flash
on a monolithic chip, the Atmel AT89C51 is a powerful microcomputer which provides a highly-flexible
 and cost-effective solution to many embedded control applications.

PIN Diagram :


------------------------------------------------------------------------------------------------------------------------------------------
Serial LEDs using AT89c51:

connecting LEDS to P2 pins and SWITCHES to P1 pins.

#include<reg51.h>
sfr leds=0xA0;
sfr SW=0x90;
unsigned int x;
int main ()
{

while(1)
{
if(SW==0xFE)
{
      leds=
0x08 ;                       //"1000"
    for( x=0;x<20000;x++);
 // providing some random delay
    leds=0x04;                          //"0100"
    for( x=0;x<20000;x++);
    leds=0x02;                          //"0010"
    for( x=0;x<20000;x++);
    leds=0x01;                          //"0001"
    for( x=0;x<20000;x++);
}
else if(SW==0xFD)
{
    leds=0x01;                          //"0001"

    for( x=0;x<20000;x++);
    leds=0x02;                          //"0010"
    for( x=0;x<20000;x++);
    leds=0x04;                          //"0100"
    for( x=0;x<20000;x++);
    leds=0x08;                          //"1000"
    for( x=0;x<20000;x++);
 }
else if(SW==0xFB)
{
    leds=0x09;                        //"1001"

    for( x=0;x<20000;x++);
    leds=0x06;                       //"0110"
    for( x=0;x<20000;x++);
  }
else if(SW==0xF7)
{
    leds=0x06;                      //"
0110"
    for( x=0;x<20000;x++);
    leds=0x09;                     //"1001"
    for( x=0;x<20000;x++);
}
else
    leds=0x00;
}
}

 Result:


 .

Delay using Timers: Gives Square Wave output

Providing Delay using internal timers of AT89c51. We are generating a pulse wave having 250ms ON time
and 250ms OFF time. microcontroller clock time is 1.085us.
                                             25ms / 1.085us = 23041 = A5FE in hex
                                             25ms x 10 = 250ms

#include<reg51.h>
void T0delay(void);
// delay function
sbit Mybit=P2^0;
 // output port
void main(void)
{
unsigned char x;
while(1)
{
Mybit= ~Mybit;
// inverter
for(x=0;x<10;x++)
T0delay();
}
}
void T0delay(void)
{
TMOD=0x01;
 // selecting timer-0 mode-1
TL0=0xFE;
 // count starts at A5FE
TH0=0xA5;
TR0=1;
// timer-0 run
while(TF0==0);
//wait until timer-0 flag overflow
TR0=0;
// then stop timer-0
TF0=0;
// reset the overflow flag
}


Result:




Result:

                                                                                                                         .

Pulse Width Modulated signal (PWM) using Timers:
PWM signals have many application in real world applications example to control the speed of the
 DC motor.Here we are generating a PWM signal having  250ms , 125ms and 50ms pulse widths.


#include<reg51.h>
void T0delay(void);
sbit Mybit=P1^0;
// output PWM port
void main(void)
{
unsigned char x;
while(1)
{
Mybit=1;
for(x=0;x<10;x++)
// generating 250ms delay for ON time
{
T0delay();
}
Mybit=0;
for(x=0;x<10;x++)
// generating 250ms delay for OFF time
{
T0delay();
}
Mybit=1;
for(x=0;x<5;x++)
// generating 125ms delay for ON time
{
T0delay();
}
Mybit=0;
for(x=0;x<5;x++)
// generating 125ms delay for OFF time
{
T0delay();
}
Mybit=1;
for(x=0;x<2;x++)
// generating 50ms delay for ON time
{
T0delay();
}
Mybit=0;
for(x=0;x<2;x++)
// generating 50ms delay for OFF time
{
T0delay();
}
}
}

// 25ms delay function
void T0delay(void)
{
TMOD=0X01;
// timer-0 mode-1
TL0=0xFE;
TH0=0xA5;
TR0=1;
while(TF0==0);
TR0=0;
TF0=0;
}

Result:



Result:

                                                                                                                         .


 Serial communication:
     Transmit the following strings when the corresponding switch is pressed
     “EMBEDDED SYSTEMS” ; “ EMBEDDED PROGRAMMING” ; “ASSEMBLY PROGRAMMING”;

#include<reg51.h>
sbit sw1=P2^0;  // switchs connecting port-2 lower pins 0,1,2
sbit sw2=P2^1;
sbit sw3=P2^2;
void Transmit(unsigned char ); // function initialization
void main()
{
unsigned char x;
unsigned char name1[ ]="Embedded systems";
unsigned char name2[ ]="Embedded programming";
unsigned char name3[ ]="Assembly programming";
TMOD=0x20;  // timer-1 mode-2
TH1=0xFD;      // preset value FD
SCON=0x50;  //Serial control 9600 baud rate selection
TR1=1;            // run timer-1
while(1)
{
if(sw1==0)      // check if switch 1 is pressed
{
for(x=0;x<=16;x++ // transmitting 17 characters to serial port
{
Transmit(name1[x]);
}
}
if(sw2==0)       // check if switch 2 is pressed
{
for(x=0;x<=20;x++)   // transmitting 21 characters to the serial port
{
Transmit(name2[x]);
}
}
if(sw3==0)    // check if switch 3 is pressed
{
for(x=0;x<=20;x++)  // transmitting 21 characters to the serial port
{
Transmit(name3[x]);
}
}
}
}

// serial port declaration
void Transmit(unsigned char i)
{
SBUF=i;
while(TI==0); // wait until serial Transmit interrupt flag  overflow
TI=0;
}

Result:

Result:

                                                                                                                        .
Interfacing 16x2 LCD Display:

. Displaying “Embedded Systems” in 16x2 LCD display
#include<reg51.h>
sfr ldata=0x90;
sbit rs=P2^0;   // LCD reset
sbit rw=P2^1;  // read/write control
sbit en=P2^2;  // LCD r/w enable
void Tdelay(unsigned int );     // functions initializaion
void lcdcmd(unsigned char );
void lcd_data(unsigned char );
void lcd_init(void);
void lcd_display(unsigned char *c );

int main( )
{
while(1){
lcd_init( );
 lcd_display("Embedded Systems");
}
}
void Tdelay(unsigned int ms)  // providing some delay
{
unsigned int i,j;
for(i=0;i<ms;i++)
for(j=0;j<1275;j++);
}
void lcd_init( void)
{
lcdcmd(0x38);
Tdelay(25);
lcdcmd(0x0F);      //display on , cursor blinking
Tdelay(25);
lcdcmd(0x06);       //  cursor increment
Tdelay(25);
lcdcmd(0x80);      // start at row-1
Tdelay(25);
lcdcmd(0x01);      // clear screen
Tdelay(10);
}
void lcdcmd(unsigned char cvalue ) // LCD in command mode opearaion
{
ldata=cvalue;
rs=0;
rw=0;
en=1;
Tdelay(1);
en=0;
}
void lcd_display(unsigned char *dvalue)
{
unsigned int x;
for(x=0;dvalue[x]!=0;x++)
{
lcd_data(dvalue[x]);
Tdelay(10);
}
}
void lcd_data(unsigned char dvalue// LCD in data mode operation
{
ldata=dvalue;
rs=1;
rw=0;
en=1;
Tdelay(1);
en=0;
}


Result:

                                                                                                                        .
Displaying Messages in LCD:

#include<reg51.h>
sfr ldata=0x90;
sbit rs=P2^0;
sbit rw=P2^1;
sbit en=P2^2;
sbit sw1=P3^0;
sbit sw2=P3^1;
sbit sw3=P3^2;
void Tdelay(unsigned int );
void lcdcmd(unsigned char );
void lcd_data(unsigned char );
void lcd_init(void);
void lcd_display(unsigned char *c );

int main( )
{
while(1){
lcd_init( );
if (sw1==0)
lcd_display("Embedded Systems");
if (sw2==0)
lcd_display("Electronics");
if(sw3==0)
lcd_display("Embedded programming");
}
}
void Tdelay(unsigned int ms)
{
unsigned int i,j;
for(i=0;i<ms;i++)
for(j=0;j<1275;j++);
}
void lcd_init( void)
{
lcdcmd(0x38);
Tdelay(25);
lcdcmd(0x0F);      //display on , cursor blinking
Tdelay(25);
lcdcmd(0x06);       //  cursor increment
Tdelay(25);
lcdcmd(0x80);        // start at row-1
Tdelay(25);
lcdcmd(0x01);        // clear screen
Tdelay(10);

}
void lcdcmd(unsigned char cvalue )   // lcd in command mode
{
ldata=cvalue;
rs=0;
rw=0;
en=1;
Tdelay(1);
en=0;
}
void lcd_display(unsigned char *dvalue)
{
unsigned int x;
for(x=0;dvalue[x]!=0;x++)
{
lcd_data(dvalue[x]);
Tdelay(10);
}
}
void lcd_data(unsigned char dvalue)       // lcd in data mode
{
ldata=dvalue;
rs=1;
rw=0;
en=1;
Tdelay(1);
en=0;
}

Result:

                                                                                                .
DC motor Controlling :


Controlling  2 motors in both forward, reverse and one forward one reverse operation according to the 4 input pins.
When input is 1110=both in forward;1101=both in reverse;1011=left one forward right one stop; 0111=left one stop
and right one forward.

MicroCode:

#include<reg51.h>
sfr sw=0x90;
sbit EN1=P2^0;
sbit EN2=P3^0;
sbit MTR1_0=P2^1;
sbit MTR1_1=P2^2;
sbit MTR2_0=P3^1;
sbit MTR2_1=P3^2;
void main( )
{
EN1=0;
MTR1_0=0;
MTR1_1=0;
EN2=0;
MTR2_0=0;
MTR2_1=0;
while(1)
{
EN1=1;
EN2=1;
if(sw==0xFE)
{
MTR1_0=0;
MTR1_1=1;
MTR2_0=0;
MTR2_1=1;
}
else if(sw==0xFD)
{
MTR1_0=1;
MTR1_1=0;
MTR2_0=1;
MTR2_1=0;
}
else if(sw==0xFB)
{
MTR1_0=0;
MTR1_1=1;
MTR2_0=0;
MTR2_1=0;
}
else if(sw==0xF7)
{
MTR1_0=0;
MTR1_1=0;
MTR2_0=0;
MTR2_1=1;
}
else
{
MTR1_0=0;
MTR1_1=0;
MTR2_0=0;
MTR2_1=0;
 }
}
}

Result:
                                                                                                                          .

4x4 KeyPad interfacing:
 //----- reading the char/number from the keyboard----//
#include<reg51.h>
#define ROW P1      // assigning  Port1 to ROW
#define COL P2       // assigning port2 to COL
void msdelay(unsigned int value);
void sertx(unsigned char );
unsigned char dat[4][4]
={'0','1','2','3',    // keypad read data
                          '4','5','6','7',
                           '8','9','A','B',
                           'C','D','E','F'};
void main()
{
 unsigned char colloc,rowloc; // initializing column and row locations
 TMOD=0x20;               // timer -2 mode-2
 TH1=0xFD;                 // preset FD
 SCON=0x50;              // serial control reg. 9600 baudrate
 TR1=1;                      // timer-1 start
 COL=0xFF;               // make column pins input
 while(1)
 {
   do
   {
    ROW=0x00;      // write "00000000" to ROW
       colloc=COL;  // read column input
    colloc&=0x0F;  // hide higher nibble
    }while(colloc!=0x0f); //check whether any change in column pins
    do
    {
     do
     {
      msdelay(20);
      colloc=COL;
      colloc&=0x0F;
      }while(colloc==0x0F);
      msdelay(20);                  // check column after 20ms
      colloc=COL;                  // it is for accuracy if there is any random spike it can ignore
      colloc&=0x0F;
      }while(colloc==0x0F);
    while(1)
    {
     ROW=0xFE;         // write "1111_1110" on to ROW
     colloc=COL;
     colloc&=0x0F;
     if(colloc!=0x0F)  // if there is a change in column/button pressed
     {
      rowloc=0;
       break;
      }
      ROW=0xFD;  // writing "1111_1101" onto the ROW
      colloc=COL;
      colloc&=0x0F;
      if(colloc!=0x0F // if there is a change in column/button pressed
       {
        rowloc=1;
        break;
        }
      ROW=0xFB;   // writing "1111_1011" onto the ROW
      colloc=COL;
      colloc&=0x0F;
      if(colloc!=0x0F // if button pressed / change in column
       {
        rowloc=2;
        break;
        }
      ROW=0xF7;     // writing "1111_0111" onto ROW
      colloc=COL;
      colloc&=0x0F;
      if(colloc!=0x0F)  // if button pressed/change in column
      {
       rowloc=3;
       break;
       }
       }
   if(colloc==0x0E)
   sertx( dat[rowloc][0]);
   if(colloc==0x0D)
   sertx(dat[rowloc][1]);
   if(colloc==0x0B)
   sertx(dat[rowloc][2]);
   if(colloc==0x07)
    sertx(dat[rowloc][3]);
    }
  }
void sertx(unsigned char x)
{
 SBUF=x;
 while(TI==0);
 TI=0;
 }
void msdelay(unsigned int value)
{
 unsigned int i,j;
 for(j=0;j<value;j++)
 for(i=0;i<100;i++) ;
  }

Result:

                                                                                                                         .
Change UserID and Password using 8051:
Here is the one example showing how to change Predefined "UserID" and "Password" manually by user. If we want to
change userID or password, it will take  inputs from the keypad two times for confirmation. If the two inputs are
matched then one of them will be assigned to the predefined one , otherwise it will display "not matched" inputs and
jumps to main menu. The following flow chart describes how it works

  click here to download the code
                It is showing initial user ID and Password when the power is ON.

It is showing new UserID and Password when the user changed successfully

                                                                                                                                 .


Smart Energy Meter Using 8051:
This is just a prototype of original meter having some features.
conventional analog energy meters indicates the meter reading by scrolling down the mechanical number plates.
 It will not show daily power consumption and cost/unit to the consumer. This is a prototype of Smart Energy meter
it indicates the meter reading and cost/unit and also it can send the same information to the power grid. This is developed
using AT89c51 microcontroller.

Features:
> Security UserID and Password
> Read Units anytime and price/unit
> send no.of Units to grid
> we can change userID and Password
> get back to previous menu

click hereto download code

Here is the functional tree chart

high level Flow chart: it gives behavioral working model of the meter


 Results:
 When user selected read units : displaying no.of units and price/unit


when user selected send to grid : it sent ID and no.of units consumed by the user

NOTE: meter readings are calculated by IR LED and PhotoDetector. In between the IR LED and PhotoDetector there
 will be a rotating magnetic coil of a conventional meter. But here we replaced it with one push button
connected to the 555 timer(Monostable multivibrator), because we can't represent them here.
                                                                                                                           .
Password based Door Locking System:

This is a  8051 based security project, we can lock and unlock the door electronically. Electronic door locking systems
are used in Bank lockers, home lockers, main doors and prison  etc.,

Working: When we give correct UserID and Password then only we can INLOCK and LOCK the door otherwise we can't
operate it. If we entered correct userID and password it will show authenticated message on LCD screen otherwise
Invalid userID or Access Denide. Then you can select one of the option LOCK DOOR and UNLOCK DOOR.
Here is the functional flow chart
 to download C-code
Here we are showing how door can be locked and unlocked mechanically and electrically with mechanical body of the
door
 Schematic Diagram:
case'1': when the door is locked

case'2':When the door is unlocked
NOTE: I haven't connected any motor driver here, but practically we can interconnect opto-coupler or motor driver H-bridge.
                                                                                                                            .
Automatic Train Gate controlling / Metro Train Indication
This Embedded System is designed to control the  train junction Gates automatically when train passes across this
junction. Here we arrange two IR sensors before the junction ( distance > 500mtrs from Gate junction) and also two IR
sensors after the junction (distance  > 500mtrs from Gate junction). The IR sensors which are before the junction will
indicate that the train is coming near to the junction and the IR sensors which are after the junction will indicate that the
train has passed away the junction.
The pictorial arrangement of the system is shown here


when train comes in between the 2 IR sensors the output of both the photodetectors will become logic - '1'. Then the
system will send logic high to the Siren, Red light will glow , green light will turn off and the Gate will close.
Here is the simple flow chart showing its operation



Case'1': When train is coming near to the junction
  to download the C-code

Case '2': When train passed away the junction


NOTE:
Here we  connected single servo motor b'coz it is a prototype. but in real time we will use two servo motors, and also
here the Siren is replaced by Yellow color LED and IR sensors are replaced by optocouplers.
                                                                                                                               .
Automatic Room bulb and fan controlling:

This system will control the room light and fan by taking inputs as person count, room light intensity and room temperature.

Working:  When there is no person entered in to room then person count will become zero and then it will not check
 intensity and temperature, so that bulb and fan will be in OFF mode.  If a person enters into a room then the person
 count will be increased by '1' and if person exits a room then person count will decrease. If person count is greater
than zero then it will check intensity and temperature. If the room intensity is less than the threshold then the bulb
will glow otherwise will be in OFF mode only and if the room temperature exceeds the threshold temperature then the
 fan will start moving otherwise will be in OFF mode only.

Pictorial view of system arrangement
  to download C-code
Here is the main flow chart


This flow chart is used to indicate person count, but in practical we dont need to implement this part

 Output Results:
case'1': when there is not person in the room

case'2': when there are two persons in the room, room condition the intensity is less and temperature is greater
than the threshold temperature

NOTE:
1. Threshold values may be different in practical
2. push buttons will be replaced by IR sensor network in practical
3. person count LEDs are not needed in practical
                                                                                                                                 .
Line follower Robot using 8051
This robot can follow black line on the floor. It is designed using micro controller and IR sensors.


  to download C-code

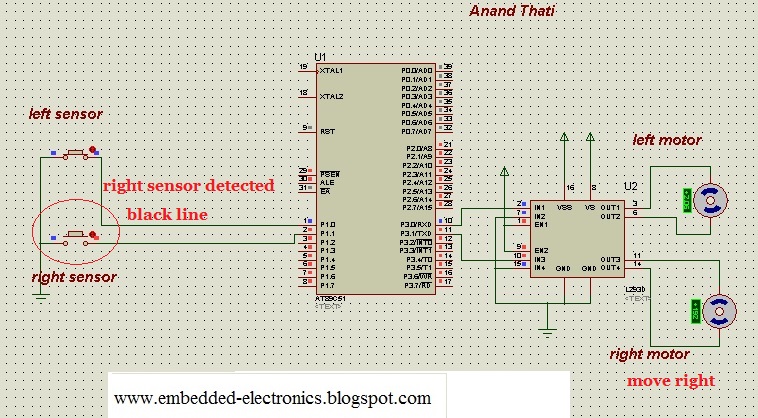

Here is the simple schematic diagram
case'1': when right motor crossed black line
case'2': normal operation




 IR sensor operation

 push buttons should be replaced by IR senors and comparator circuits
                                                                                                                                  .
Coal mine detection Robot:

It is mandatory to check the coal mine weather conditions prior to workers entry. If the weather conditions are normal
then workers can enter , otherwise they will not go inside the mine. To check the weather conditions all over the mine
 we will send one robot which will monitor CO (carbon monoxide) in the mine, temperature and light intensity in the mine.
 After reading each parameter it will compare with threshold readings and produces output depending the readings taken.
This robot is a obstacle avoidance robot, it uses IR sensors to control its movement in the mine.
here is the flow chart
 to download C-code

Schematic Diagram:
case'1':  when the light intensity is less in the mine
pulse width to the light is 0.1sec. and obstacle detected on left side. robot moving to right side

case'2': when light intensity is less, high temperature and CO gas exceeded in the mine
 pulse width to the light is varying 0.1s, 0.25s and 0.5 sec to indicate 3 parameters are not in normal condition. and no
obstacle detected
NOTE:
push button at P1.3 has to be replaced by CO Gas sensor,
push buttons at P1.4 and P1.4 are to be replaced by IR sensors.
Green LED will be replaced by Buzzer.
Threshold values may vary in practical
                                                                                                                              .
Automatic Car Parking Indicator:
This system will indicate empty car parking slots at the entry level. Car parking at shopping malls and markets is a big
 issue, is creating traffic jam. To avoid this we will use this system to indicate empty slots and filled slots, so that a car
owner can directly take his car to that particular empty slot. we will indicate the slot state by LEDs and also in LCD screen.
 we will use IR sensors to sense the presence of car in the slot.
Working: when a car enter into a empty slot the photo detector output will become '1', this will change the state
of the slot to filled, otherwise it is remained in empty state only. like wise all the slots are detected by IR sensors.
Here is the functional flow chart
  to download C-code
Schematic Diagram:
case'1': when all the slots are empty
all the LEDs are glowing and slot states are displayed in LCD
here LED ON means slot empty; and LED OFF means slot filled
case'2': when 1st and 2nd slots are filled
1st and 2nd LEDs are glowing and the same thing is displayed in LCD
NOTE:
LEDs are to be replaced by IR sensors and comparators

                                                                                                                               .
1.RF remote controlled home loads
                As  I already mentioned earlier the basic need to build an embedded system is the desired application. First you
 decide what application you want. I chose my application that is  to build a system that can control the home loads through
  remote.  I decided to do that project strongly, and what is next step ?  That Is our required functionality. Here I decided to
control four home loads that might be fan, lights, TV, etc., .
Then draw the basic block diagram of your application

I built my block diagram as I required.  Go through the required components, I chose
Transmitter Part:-
Ø  Since I am using wireless communication I required one receiver transmitter pair. Here am using RF Txr &Rxr pair which
 will be operated in 433MHz frequency band. These pair can operate in limited area up to 80mtrs. Instead we can use IR
 transmission also but it can operate in line –of-sight conditions.
Ø  To operate the four loads I can choose 4-push buttons at the transmitter side. Since wireless communication is a serial
communication we can’t transmit parallel data. So we require a Encoder which can convert parallel data to serial data.
Here I chose HT12E encoder. With this I completed the basic requirements to build transmitter part. The total circuit will be
 shown later.

Receiver Part:-

Ø  Encoded data will be received through the RF receiver. It has to convert from serial data to parallel data, for that we
 need to use the compatible Decoder. I chose HT12D decoder.
Ø  To control the actions we need one controller. I am choosing AT89C51 controller because am good at this.
Ø  Since we are controlling AC loads we need Relay circuits(SPDT single pole double threw 12-v)
Designing:-
Transmitter:-
HT12E is 18-pin dip it has 8-Address pins and 4 Data pins.


Pins 1-8 are address pins here we don’t need. 14-pin is floating pin. Pins 10-13 are data pins D8 to D11 respectively.
 15 and 16 pins are oscillator pins.17th pin is Data out. S1-S4 are push buttons.
Receiver:-
          Receiver data flow:-
                       RF receiver à Decoder à microcontroller à relays à loads
Ø  The RF receiver part connection is same just like transmitter part. The parallel is fed to AT89C51 microcontroller. The
resulted outputs are  fed to relays through transistors.





MicroController:-
 It is a 8-bit and 40-pin DIP micro controller developed by Atmel corporation. It has 4 ports
PORT-0: multiplexed  Address and Data lines floating pins
PORT-1: I/O port floating pins
PORT-2: higher order Address pins floating pins
PORT-3: I/O pins and have a special function to each pin
11.0592MHz crystal provides the Clock frequency to the Micro controller.
Relay:-
 1N4148 diode protects the transistor and relay from the damage and back emf.
FLOW CHART:-
        Flow chart will illustrates the total control functionality of the circuit






Initially all the inputs are assigned to ‘1’ and all the loads are assigned to ‘0’.
  When switch1 is pressed at the Txr it generate 1110 data. This data is compared in the micro-controller. If it matches then
 load1 preformed XOR operation  with ‘1’. If initial value is ‘0’

                                   0 xor 1=1;                                                                                                                                                                                                                                                        When second time pressed the same switch-1 then (already load-1=’1’)
                                               1 xor 1=0;
 The same operation is performed to switches-1,-2 and -3.

Source Code:-

#include<reg51.h>
sfr rfr=0x90;
sbit load1=P3^0;
sbit load2=P3^1;
sbit load3=P3^2;
sbit load4=P3^3;
unsigned int i;
void main()
{
rfr=0x0F;  // initialising as input port
load1=0;   // output pin
load2=0; // output pin
load3=0; // output pin
load4=0;  // output pin
while(1)  // super loop
{
if(rfr==0x0E // checks if switch-1 is pressed or not
{
  load1^='1';   //xor operation
for(i=0;i<50;i++);
}
else if(rfr==0x0D)  // checks if switch-2 is pressed or not
{
load2^='1';    //xor operation
for(i=0;i<50;i++);
}
else if(rfr==0x0B)   // checks if switch-3 is pressed or not
{
load3^='1'; //xor operation
for(i=0;i<50;i++);
}
else if(rfr==0x07)   // checks if switch-4 is pressed or not
{
load4^='1';  //xor operation
for(i=0;i<50;i++);
}

}
}

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

2.Motion detection movable Robot:-

          The motion dependent applications are becoming  more popular in the present days for example  a door can open
when there is a human movement in the sensor region. Likewise it can be used as person detection robot. This the prototype
 of that kind. Here we use simple circuit to detect the human is dead or alive. It is more important to identify and rescue the
 live persons when natural disaster situations.
This circuit is designed with AT89C51 microcontroller which is a basic microcontroller. Here we use PIR(Passive
Infrared ) sensor to detect the motion. The robot can move in all directions. It is a wireless RF controlled robot.

Txr PART:-
          The transmitter part is shown in fig.1 it designed with HT12E Encoder and 4 push buttons. Whenever the user presses
 the buttons it generates 12-bit data which contains 8-bit address can set and 4 data bits. These data is transmitted to the
robot by the RF transmitter which is running at 433MHz frequency. For each button pressed it generates a different
 code. The entire Transmitter circuit requires 5v DC supply.

Rxr PART:-

          This  contains the RF receiver and its output to the decoder. The decoder here we should use the HT12D to decode
 the received data. The output of the decoder is 4-bit data which is generated at the transmitter level when the  switch
 pressed. For motor operations we required to write the C code. Detection of  human is manual control. The commands
can be passed to the robot whenever we want switch the detection. Here I used forward and backward buttons to control
 the detection operation. For this we need to stop the robot at doubted place and press the forward and backward buttons
at a time. If the PIR detects motion then the controller sends  high input to the  buzzer to indicate that the person is alive.
 To smoothen the motor operations and currents we use L293D IC. These 60 RPM DC motors requires a voltage of 12V
 and it can be provided by lead acid battery.

          Assemble the circuit on a general purpose PCB. And arrange it on robotic structured cabinet. This was practically
implemented and tested.


                                                     Fig.1  Receiver part


Fig.2 Transmitter part

This circuit can detect motion with the help of PIR sensor, it is a simple and well working circuit. It was tested practically.

The source code is:

#include<reg51.h>
sfr rfr=0x90;
sfr mtr=0xB0;
sbit pir=P2^0;
sbit buz=P2^3;
void detection(void);
void main()
{
 rfr=0xFF;
 buz=0;
 while(1)
  {
   if(rfr==0x0E)
    {
  mtr=0x05;
  }
 else if(rfr==0x0D)
  {
   mtr=0x0A;
   }
 else if(rfr==0x0B)
  {
   mtr=0x02;
   }
 else if(rfr==0x07)
   {
    mtr=0x08;
    }
 else if(rfr==0x0C)
   {
   detection();
  }
   else if(rfr==0x0F)
    {

  mtr=0x00;
  buz=0;
   }
  else
      mtr=0x00;
   buz=0;
 }
 }
 void detection()
 {
 unsigned int i;
   mtr=0x00;
    if(pir==1)
     {
     buz=1;
     for(i=0;i<200;i++);
      }
    else
       buz=0;
}

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Coming soon...

No comments:

Post a Comment
